ESHA
Floor Stand
Network Rack
Product Summary
ESHA Floor Mount Racks designed for small Networking, Domestic application, Audio Video, Telecom and Lab applications. Racks are fabricated out of CRCA steel CNC programmed, punched, bended, welded and Powder coated with highest quality standards. Configuration will be for standard racks are welded frame integrated with side panels and vented top cover with fan mounting provision, Front Glass door with lock and key provides you the visibility and security for your equipments. Back Metal door with lock and key. Free standing on floor with 4 No. castors wheels 2 wheels with break. Racks are available from 9U to 27U Variants with 600mm deep configuration. We can also undertake customized requirements.
Features
- Conforms to DIN 41494 OR equivalent ISO Standards
- Adjustable 19” equipment mounting verticals provides the better mounting flexibility, and maximizes the usable mounting space
- Depth adjustable mounting slots
- Precision engineering capabilities and best efficient software configuration product technology provide the best product quality and fastest delivery in the industry
- Top and bottom Panel with ventilation and cable entry facility
- Provision to mount the cooling fans on the top panel
- Powder coated finish with Seven Tank pretreatment process meeting all industry standards
- Grounding and Bonding Options
- 100% assured compatibility with all equipments conforming to DIN 41494 (General industrial standard for equipments)
Optional Accessories
- Front doors of toughened glass or perforated
- Rear steel doors venting options or perforated
- Stationary and Sliding Shelves
- Cantilever Shelves
- Equipment Support Angles
- Cooling Fans
- Cable Management Accessories
- AC Mains Channel
- Earth Continuity Kit
- Castors with foot-operated brakes
- Captive Mounting Hardware
- Fire Alarm Unit
- Fan Tray with Electronic Controller
- Digital Locks
- Temperature Indicator
Tecnical Data
| Tecnical Data | |
| Rack Standard | Conforms to DIN 41494 or equivalent standard |
| Construction | Welded |
| Front Door | Lockable Toughended Glass Door / Perforeted |
| Basic Frame | Steel |
| Equipment Mounting | DIN Standard |
| Mounting Angle | 19� Mounting angle made of formed steel |
| Standard Finish | Powder Coated |
| Top and Bottom Cover | Welded to Frame, Vented and Cable entry/exit cut outs from Top & Bottom |
| Side Panels | Integrated Side panels |
| Castor wheels | Front 2 wheels with break / Rare wheel without break |
| Standard Color | Grey & Off White or Black |
| Static Load | 200 kgs |

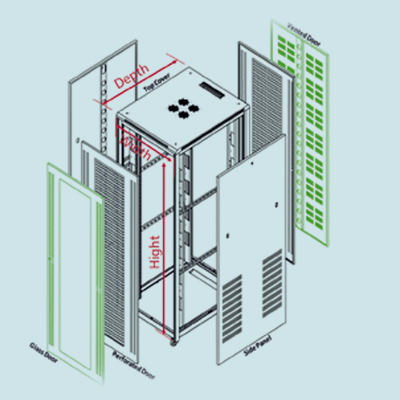

| Part Code & Dimensions | |
| Part Code | Total Height in mm(h) | Usable Height(h) | Total width in mm(w) | Usable width(w) | Total Depth in mm(d) | Usable Depth in mm(d) |
| ESHA-FS-6060-09 | 578 | 09U | 600 | 19" | 600 | 520 |
| ESHA-FS-6060-12 | 715 | 12U | 600 | 19" | 600 | 520 |
| ESHA-FS-6060-15 | 845 | 15U | 600 | 19" | 600 | 520 |
| ESHA-FS-6060-17 | 934 | 17U | 600 | 19" | 600 | 520 |
| ESHA-FS-6060-22 | 22U | 36U | 600 | 19" | 600 | 520 |
| ESHA-FS-6060-27 | 1378 | 27U | 600 | 19" | 600 | 520 |
| 1U-44.45 mm Note : Customized model also undertaken on request. Different color options with powder coating |
||||||
